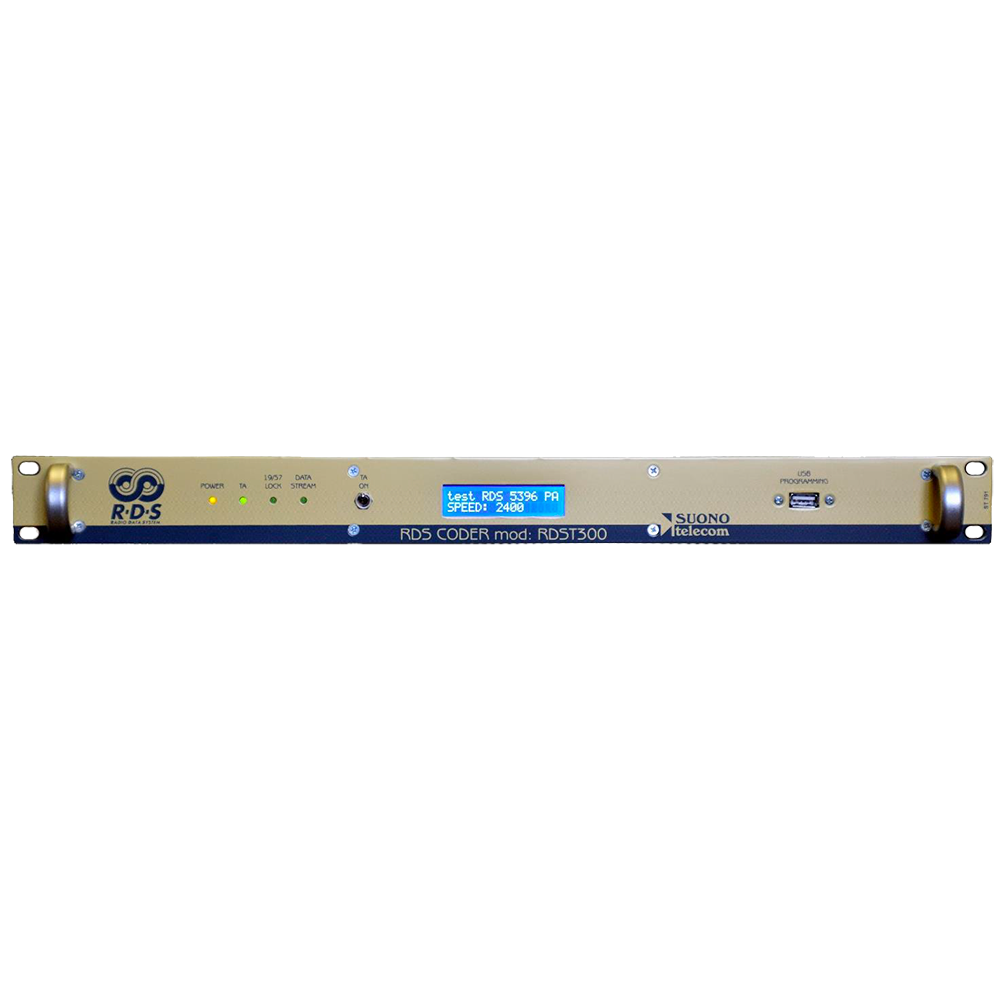

RDS CODER mod. RDST300
RDS Coder
Technical Features
| GENERAL | |
|---|---|
| RDS Signal: | Conform to the EBU document tech 3244 (3/1984) and supp. n.1 (3/1987), and CENELEC EN 50067 |
| RDS Services directly supported: | PI, PS, PTY, TP, AF, TA, DI, M/S, PIN, RT, RT+ TMC, EON, PTYN, ECC, LIC, TDC, IH, CT, ODA |
| RDS Signal subcarrier frequency | 57 kHz |
| Sampling rate: | 361 kHz |
| Bandwidth: | ± 2.4 kHz (50 dBc) |
| Audio Pass Band Flatness: | <±0.025dB 30Hz÷15 KHz see plot 2 |
| Recommended FM deviation: | 6.8 kHz |
| Pilot PLL 57 to 19KHz capture range: | 8 Hz |
| Stereo pilot frequency required: | 19000 Hz ± 2 Hz |
| Pilot tone level: | min. 120 mV p-p (-26 dBu) |
| Phase shift adjust MPX transmission: | Full range, in 9.5 deg. steps |
| Output level adjust default | 0 – 1.4 V p-p |
| Output impedance | <30 Ohm |
| Audio/MPX/Pilot input | < 10 KOhm |
| Passthrough voltage gain | 2 Hz – 100 kHz (0,01 dB) |

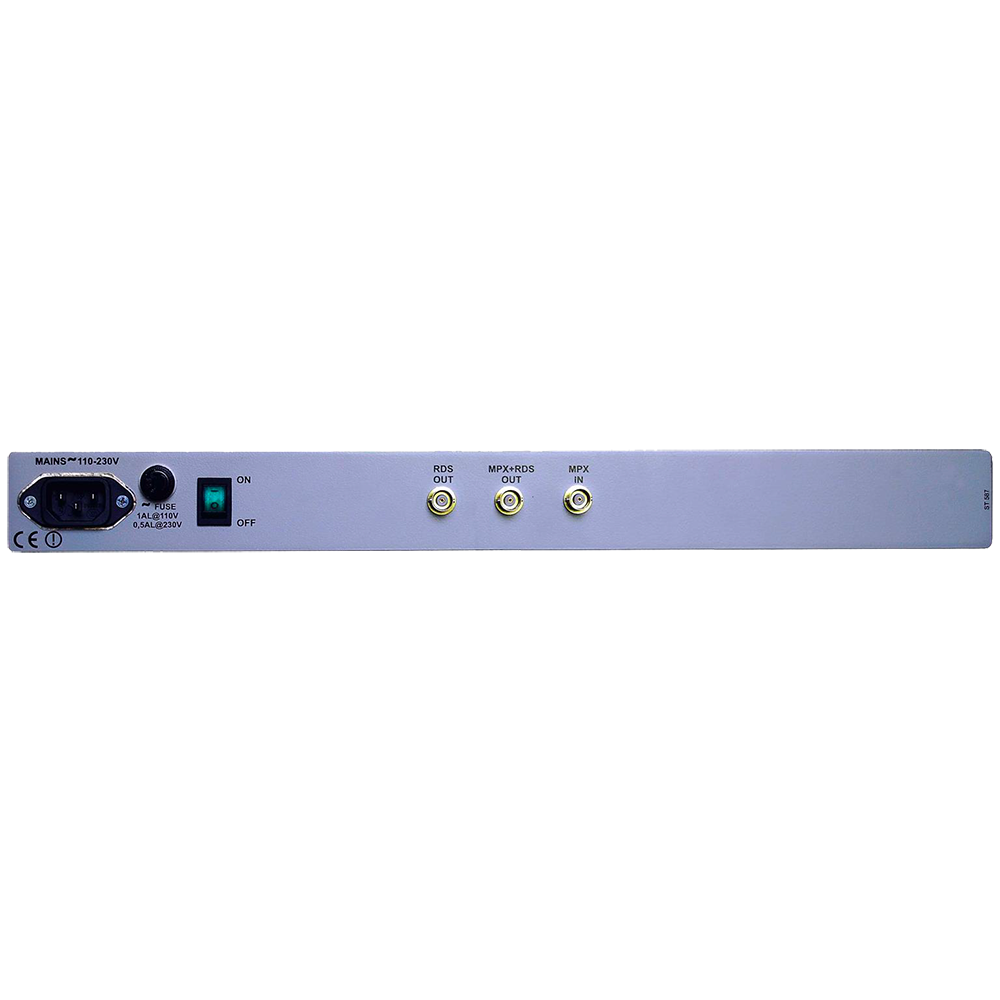

| Signal connectors | unbalanced BNC-F |
| Data connector | RS-232 (DTE, 9 pins), bi-directional |
| Communication speed | software switchable 1200, 2400, 4800, 9600, 19200 bps |
| Communication mode | 1 stop bit, 8 data bits, no parity, ASCII or UECP |
| TA switching | software or external switch |
| Program switching | software or external switch |
| Expansion bus type | IIC, 400 kHz |
| Powering | 110-220VAC ±15% 50~60Hz |
| Power consumption | 20 VA |
| Temp. operation | 0° C to +40 °C |
| Relative air humidity | 90% non condensing |
| Dimensions | 19″ 1HE unit 320mm deep |
